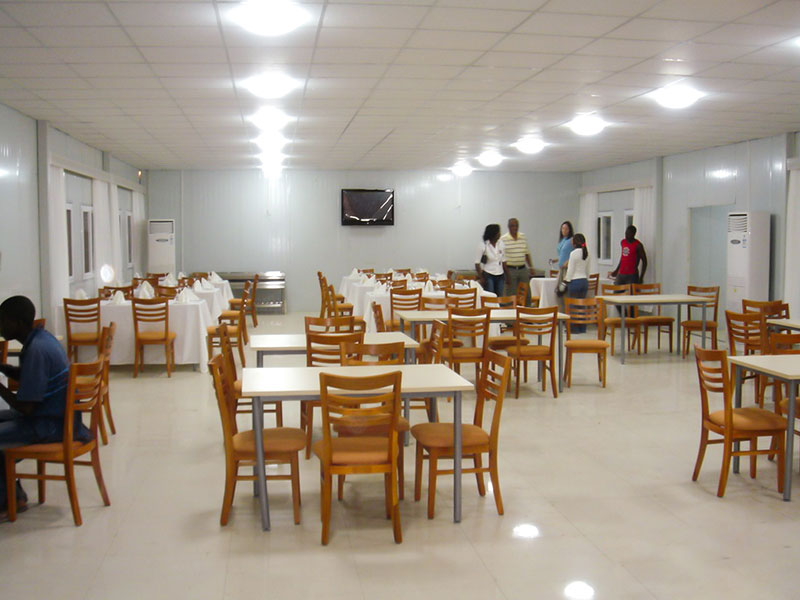

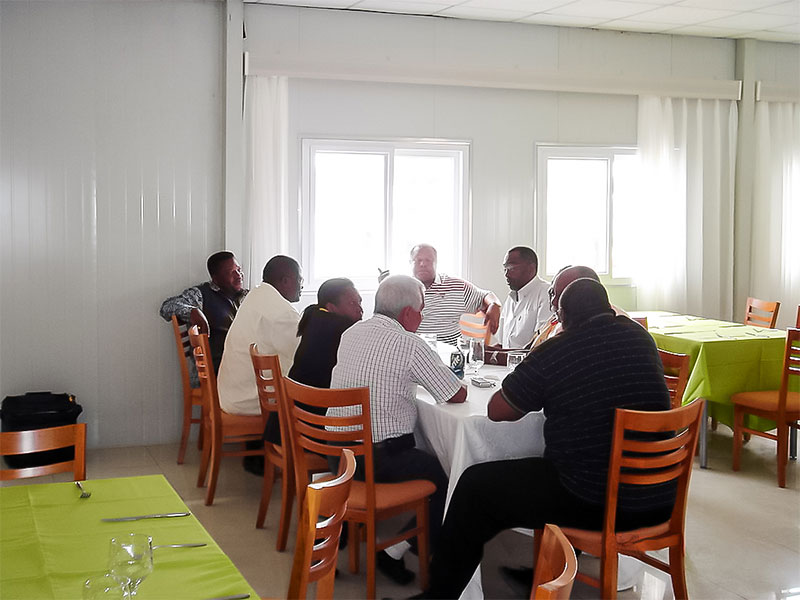

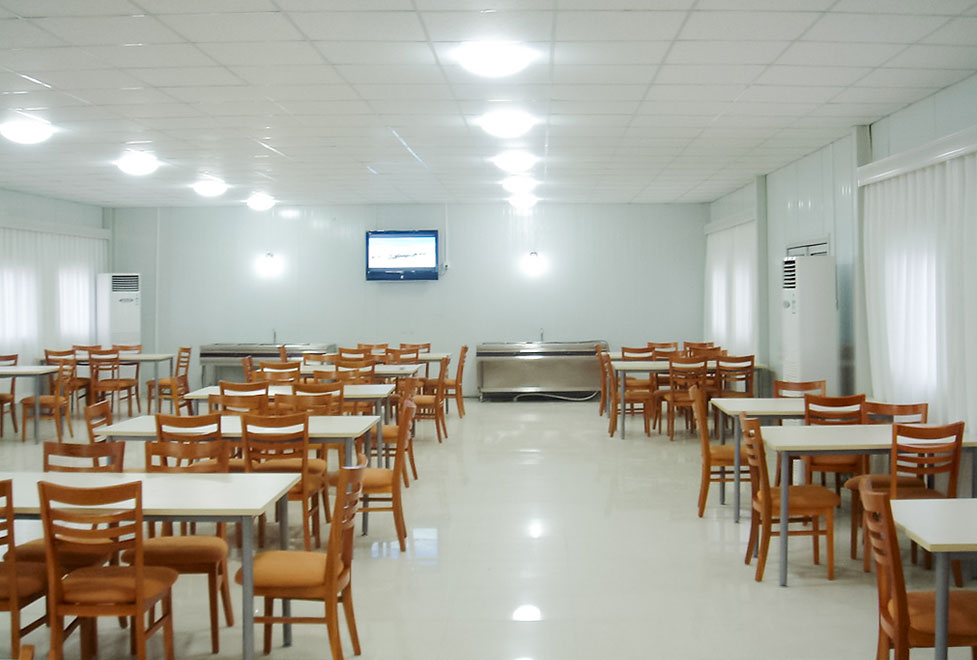

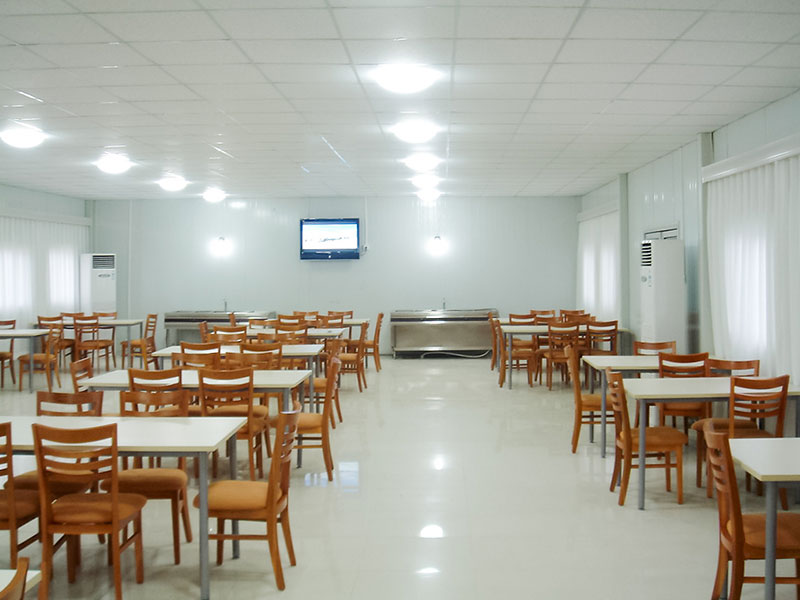

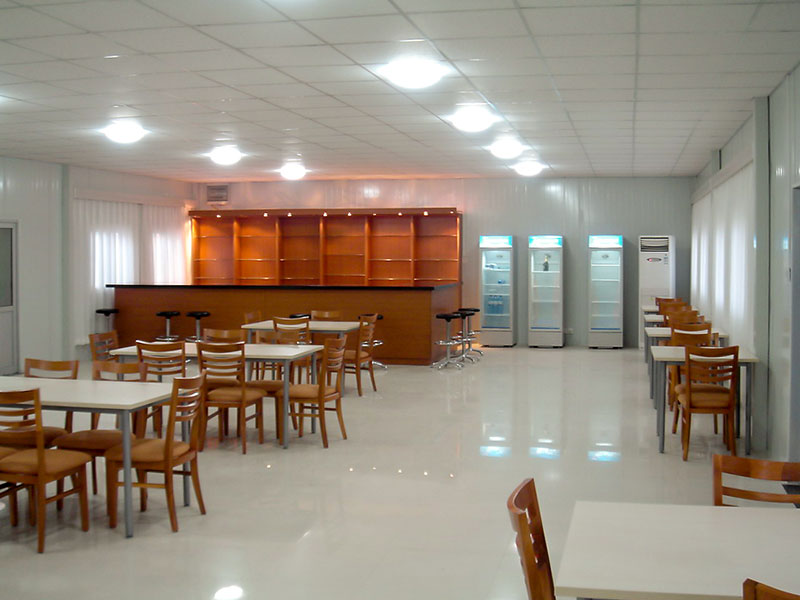

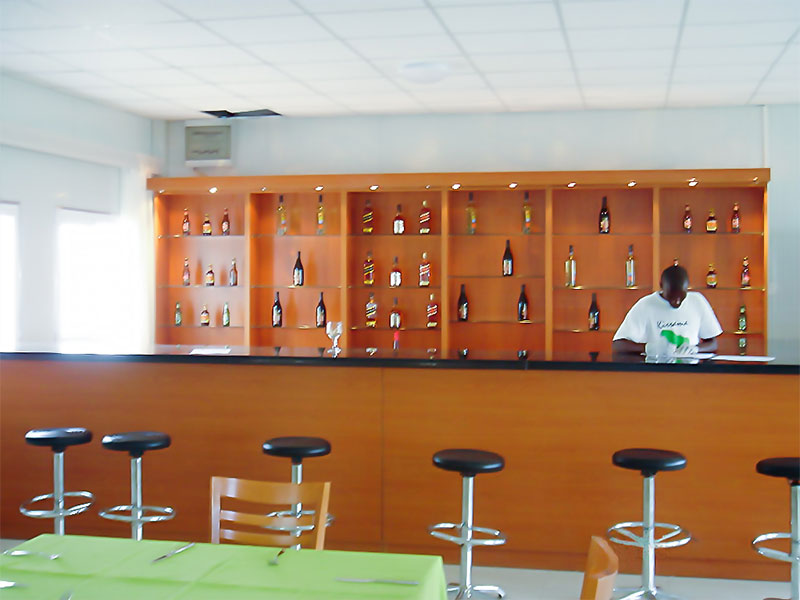

The prefabricated house for Mess hall is a refinement of the function of the movable products, which can meet the temporary dining needs of the temporary construction camp staff. Since this product mainly uses steel square tubes and C-shaped purlins as the product skeleton, it has certain limitations in the span and height of the hall. If necessary, one or several rows of support columns need to be added inside the restaurant to extend the width of the restaurant to meet the needs of Usage requirements.
| No. | Sort | Name | Specification |
| 1 | Product Type | Degree of Standardization | custom-made product, designed and manufacture according to clients requirement |
| 2 | Size | Length (m): | No limited, increase expansion joint when length more than 200m. |
| 3 | Width(m): | single span should be less than 12m, an arbitrary width could make by union spans | |
| 4 | Heigth(m): | single floor≤5m, two or three floors, average height ≤4m | |
| 5 | Roof slope: | slope is 1:10~1:5 | |
| 6 | Floors: | less than 3 floors | |
| 7 | Standard equipment | Ground channel | Galvanized steel panle compression, thickness is 0.8mm |
| 8 | Post | Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts. | |
| 9 | Roof beam | roof truss consist of thin sharpe steel by welding, component surface make antirust process | |
| 10 | Purlin | purlin is Ctype steel, the material is Q235, components surface make antirust process. | |
| 11 | Wall beam | wall beam is Ctype steel or square pipe, the material is Q235, component surface make antirust process | |
| 12 | Floor | made of floor master beam, secondary beam and floor surface plate(plywood) | |
| 13 | wallboard | 50~150mm thickness double surface color steel sandwich panel, white color | |
| 14 | roof board | 50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color | |
| 15 | door | color steel sandwich panel door,size:750mm*2000mm; | |
| 16 | window | PVC sliding window, with steel screen. | |
| 17 | Options | Ceiling | mineral wool acoustic panel, aluminum buckle panel,PVC ceiling |
| 18 | Elevation floor | Design based on local weather condition. | |
| 19 | Canopy | color steel sheet or color steel sandwich panel canopy | |
| 20 | door | compound wooden door, security door, aluminum alloy door | |
| 21 | Electrical accessories | Supply plan, design and construction according to relevant national norms(220V,50Hz, with lamp, switches and multi-function sockets.) | |
| 22 | Water plumbing accessories | Supply plan, design and construction according to relevant national norms | |
| 23 | Sanitary ware | Supply according to customer needs | |
| 24 | Furniture and electric appliance | Supply according to customer needs | |
| 25 | Design technical data | Roof dead load | 0.3KN/sqm |
| 26 | Roof live load | 0.5KN/sqm | |
| 27 | Floor dead load | 0.5KN/sqm | |
| 28 | Floor live load | 2KN/sqm | |
| 29 | Wind load | 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data) | |
| 30 | Earthquake resistant intensity | 8 degree | |
| 31 | Used for temperature | Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25) | |
| 32 | Installation | Installation tools | electric drill, electric hammer, spanner, screwdriver, pulling rivet etc, house installation need electric power. |
| 33 | Installation efficiency | Four skilled labor one day can erect 40m2's house body | |
| 34 | Transport | container | each 40ft container could load 130~150Sqm house body material |
Factory design and production, the main structure is connected by bolts, standardized production, accurate component size, small error
Mechanized processing, component standards are interchangeable
The material is light in weight, easy to assemble and disassemble.
The manufacturing and installation cycle is short. During the disassembly and assembly process, the number of rooms can be reduced or increased without changing any original materials during the turnover according to the needs of customers, and the transportation is convenient.
Beautiful and durable, the product life of more than 15 years, according to the cycle of maintenance and replacement, can extend the product life of more than 10 years. one-time investment, high reuse value, comprehensive use of low cost。
Beautiful and free decoration, can be installed ceiling and corresponding electrical appliances, generally do not need to ceiling decoration wall, heat insulation effect is good
