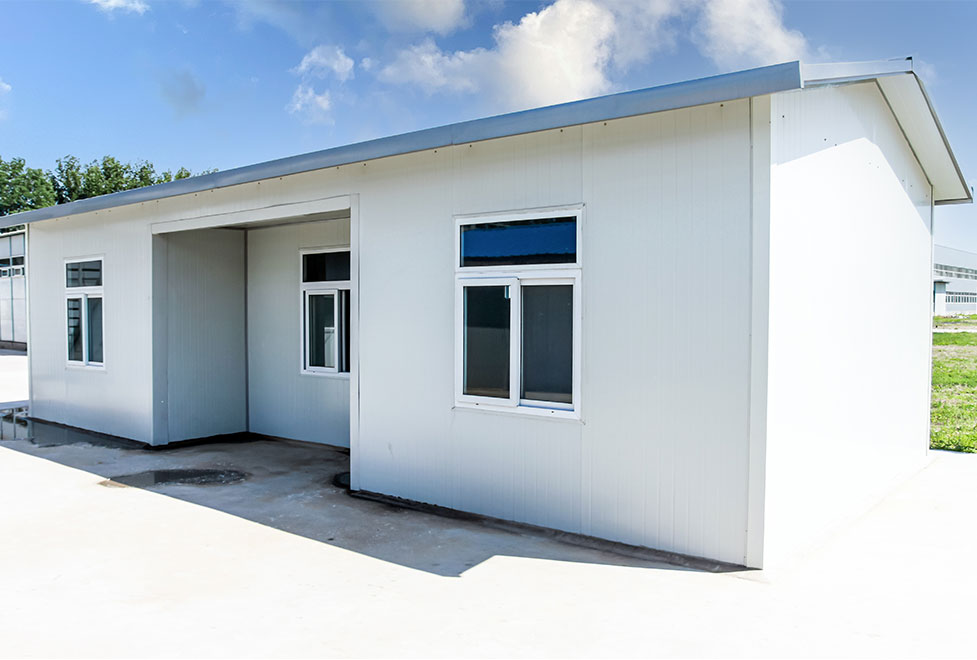

Prefab Steel Office

Product Parameters of Prefab Steel Office

• Prefab Steel K Type House Office Technical Specification

  No.	Classify	Name	Technical Parameter
  1	Size	Length	NK+160(n=4,   5, 6^ ) K is modular(1K=1820mm)
  2		Width	2K≤ Width≤ 6K, K is modular(1K=1820mm)
  3		Wall Height	single   floor height less than 6K
  4		Roof Slope	1: 10, 1: 5
  5		Interior Net Height	≥ 2780mm(not include false ceiling size)
  6		Floor	≤ 3 floors
  7	Standard	Ground Beam	C80# profiled steel
  8		Post	double C80# profiled steel
  9		Roof Beam	Herringbone Trussed Beam (jointing by C80# profiled steel)
  10		Roof Purlin	40# angle iron
  11		Wall Panel	50, 75mm thickness double color steel sandwich panel
  12		Roof Panel	50, 75, 100mm thickness double color steel sandwich panel
  13		Exterior Door	Steel   frame sandwich panel door, szie: 820mm*2000mm
  14		Interior Door	Sandwich   panel door, size: 750*2000mm
  15		Window	PVC   sliding window, size: 1740mm*925mm
  16		Floor	15mm   thickness plywood
  17	Options	Flase Ceiling	mineral wool acoustic panel, aluminium buckle panel
  18		Window	PVC casement window, PVC top hung window, aluminium sliding window, aluminium alloy casement window, blind window
  19		Door	Single opening security door, size: 900mm*2100mm;
  			double opening security door, size: 1740mm*2100mm; compound wooden door
  20		Interior   Electrical	supply plan, design and construction
  21		Water Plumbing & Sanitary	supply plan, design and construction
  22		Floor	15mm bamboo panel, building templet board
  23		Floor Decoration Material	Ceramic tiles, PVC floor, compound wooden floor
  24	Frame	Roof Dead Load	30kg/Sqm
  25		Roof Live Load	50kg/Sqm
  26		Floor Dead Load	50kg/Sqm
  27		Floor Live Load	200kg/Sqm
  28		Wind Resistance	11   degree (105km/h)
  29		Fireproof Degree	Maintenance wall panel is nonflammable material, B1 degree;
  			Floor plywood could reach B1 degree after making fireproof process.
  30		Earthquake resistant intensity	7degree




• Prefab Steel T Type house Office Technical Specification

  No.	Sort	Name	Specification
  1	Product Type	Degree of Standardization	custom-made product,design and manufacture according to clients requirement
  2	Size	Length (m):	No limited, increase expansion joint when length more than 200m.
  3		Width(m):	single span should be less than 12m, an arbitrary  width could make by union spans
  4		Heigth(m):	single floor≤5m, two or three floors, average height ≤4m
  5		Roof slope:	slope is 1:10~1:5
  6		Floors:	less than 3 floors
  7	Standard equipment	Ground channel	Galvanized steel panle compression, thickness is 0.8mm
  8		Post	Inside post is steel square pipe,material is Q235,components surface make antirust process,and decorate with color steel compression parts.
  9		Roof beam	roof truss consist of thin sharpe steel by welding,component surface make antirust process
  10		Purlin	purlin is Ctype steel,material is Q235,components surface make antirust process.
  11		Wall beam	wall beam is Ctype steel or square pipe,material is Q235,component surface make antirust process
  12		Floor	made of floor master beam, secondary beam and floor surface plate(plywood)
  13		wallboard	50~150mm thickness double surface color steel sandwich panel,white color
  14		roof board	50~150mm thickness double surface color steel corrugated sandwich panel,blue or red color
  15		door	color steel sandwich panel door,size:750mm*2000mm;
  16		window	PVC sliding window, with steel screen.
  17	Options	Ceiling	mineral wool acoustic panel,aluminium buckle panel,PVC ceiling
  18		Elevation floor	Design based on local weather condition.
  19		Canopy	color steel sheet or color steel sandwich panel canopy
  20		door	compound wooden door,security door,aluminium alloy door
  21		Electrical accessories	Supply plan,design and construction according to relevant national norms(220V,50Hz,with lamp, switches and multi-function sockets.)
  22		Water plumbing accessories	Supply plan,design and construction according to relevant national norms
  23		Sanitary ware	Supply according to customer needs
  24		Furniture and electric appliance	Supply according to customer needs
  25	Design technical data	Roof dead load	0.3KN/sqm
  26		Roof live load	0.5KN/sqm
  27		Floor dead load	0.5KN/sqm
  28		Floor live load	2KN/sqm
  29		Wind load	12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)
  30		Earthquake resistant intensity	8 degree
  31		Used for temperature	Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)
  32	Installation	Installation tools	electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.
  33		Installation efficiency	Four skilled labor one day can erect 40m2's house body
  34	Transport	container	each 40ft container could load 130~150Sqm house body material
